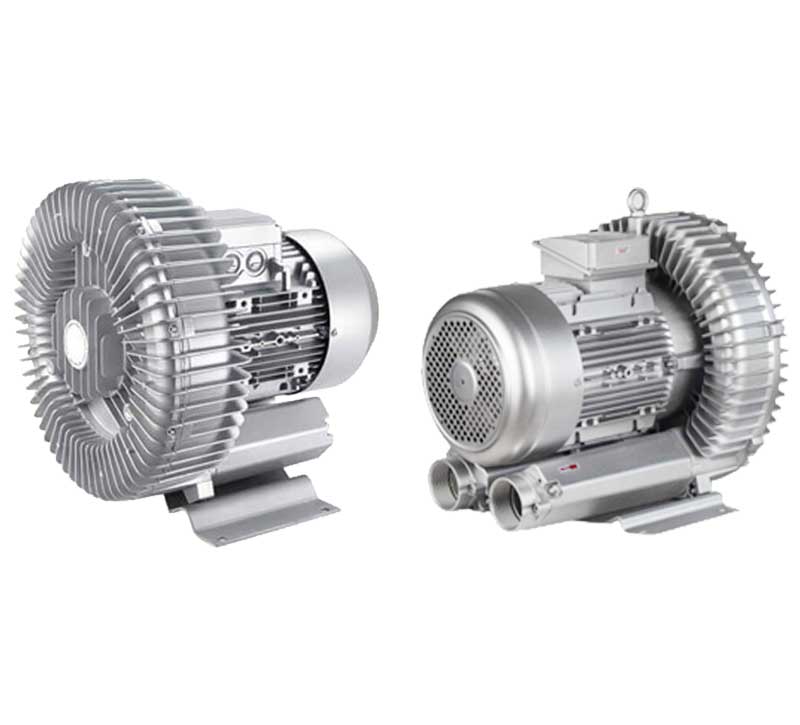

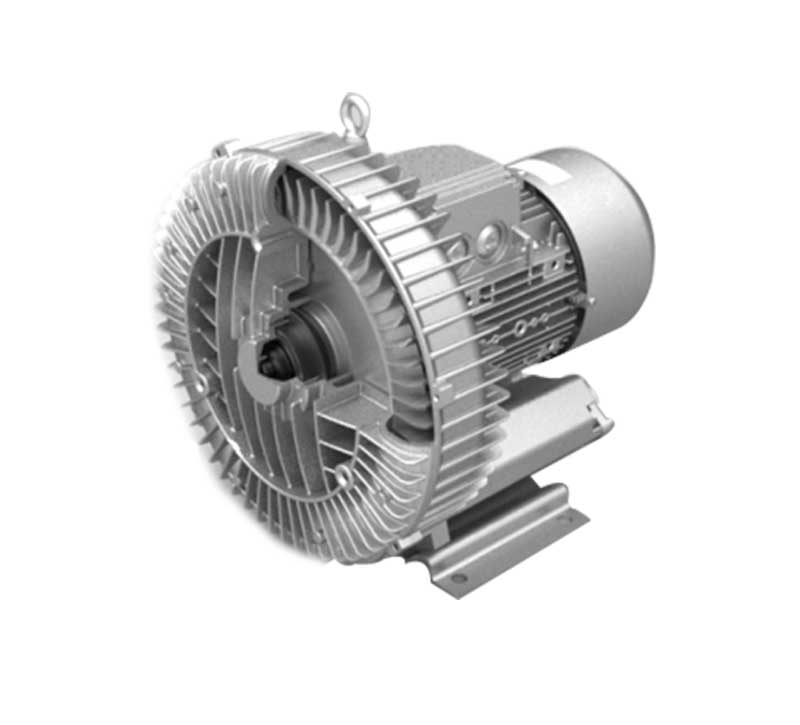

Ring Blower / Regenerative Blower :
Oil-Free, High-Efficiency Air Movement for Industrial Applications.
The Ring Blower—also known as a Side Channel Blower—is a high-performance, oil-free air mover designed for applications that require continuous, non-pulsating air flow. Ideal for both vacuum and pressure operations, ring blowers are widely used in vacuum conveying, wastewater aeration, packaging, vacuum lifting, and other demanding industrial systems.
With a compact design and durable aluminum alloy or cast construction, the ring blower offers quiet, low-maintenance operation. It delivers reliable performance even in continuous 24/7 operations.
Core Advantages:
Dual Functionality:
Can be used for both vacuum and pressure applications.
Low Noise:
Equipped with sound-dampening features for quiet operation.
Continuous Duty Rated:
Built for 24/7 industrial use with minimal maintenance.
Single-Phase & Three-Phase Options:
Available in various power configurations to suit global industrial needs.
Unevac's Ring Blower
Discover high-efficiency modular dust collectors with advanced filtration and pulse-jet cleaning technology. Flexible, scalable dust extraction systems designed for industrial air quality, energy efficiency, and OSHA compliance.
Our Ring Blower is ideal for:
-
Powder Transfer System, Dust Collectors
-
Finishing operations like Buffing, Polishing, Surface Finishing, powder coating, etc
-
Abrasive machining process like grinding, honing, and polishing, sand blasting, etc
-
Metalworking and Fabrication
Technical Specifications:- Ring Blower
| Model | Power (kw/hp) | Air Flow (m3/hr) | Suction (mbar) | Voltage | Noise Level (db) | Suction Port Size (mm) |
|---|---|---|---|---|---|---|
| UVRB - 10 | 0.75/1.0 | 143 | 200 | 415 V & 50 Hz | 63 | 40 |
| UVRB - 20 | 1.5/2.0 | 210 | 240 | 415 V & 50 Hz | 64 | 50 |
| UVRB - 30 | 2.2/3.0 | 210 | 270 | 415 V & 50 Hz | 64 | 50 |
| UVRB - 40 | 3.0/4.0 | 320 | 290 | 415 V & 50 Hz | 69 | 63 |
| UVRB - 50 | 3.5/5.0 | 380 | 330 | 415 V & 50 Hz | 69 | 63 |
| UVRB - 75 | 5.5/7.5 | 570 | 340 | 415 V & 50 Hz | 75 | 75 |
| UVRB - 100 | 7.5/10.0 | 600 | 350 | 415 V & 50 Hz | 80 | 100 |
*Note: Technical Specifications may change at any period by the company
